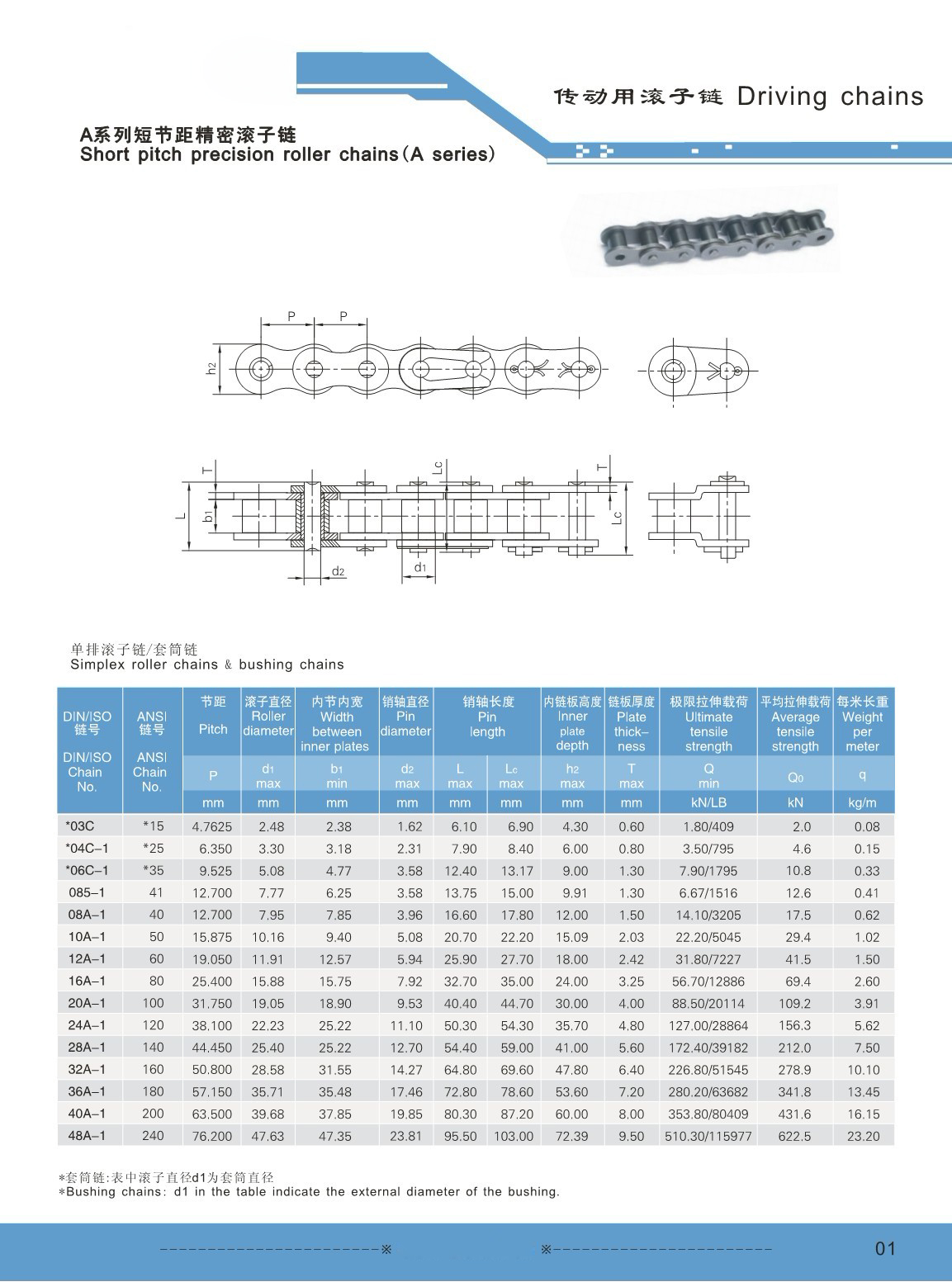

1. DIN/ISO chain No.: 16A-1
2. ANSI chain No.: 80
3. Chains pitch: 25.400 mm
4. Roller diameter: 15.88 mm
5. Pin diameter: 7.92 mm
6. Plate thickness: 3.25 mm
7. Weight per meter: 2.60 KG/M
8. Average tensile strength: 69.4 KN
9. Surface treatment: shot-blasting/natural/black/blue/nickelizing/galvanization.
10. OEM and ODM available.
Own Import & Export License, The TV trade mark registered successfully in many countries, Sales network spread all over China, Products export to 65 countries in five continents.
Membership:
1. The member of China General Machine Components Industry Association.
2. The member of China Chain Transmission Association.
3. The member of China Chain Standardization Association.
4. The member of China Agricultural Association Machinery Manufacturers.
With our excellent trained staffs and workers, advanced and efficient equipments, completely sales network, strict QA systems. You are confidence that our premium qualified chain can meet all customers' specification and strictest quality standards.
Please do not hesitate to contact us for more information on how TransVision products can meet your industries demands at highly competitive pricing.
